The New PLT-1 Replacement LED Watch Module


The New PLT-1 Replacement LED Watch Module

The new PLT-1 is a direct replacement module for the 1970’s LED watches made by Pulsar, Hamilton and Omega.

The original LED dot pattern display along with the plastic carrier and magnetic reed-switches are removed from the old broken / faulty corroded watch and reused with the new PLT-1 module ensuring original functionality.

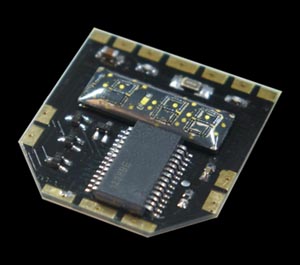

PLT-1 Replacement LED Watch Module

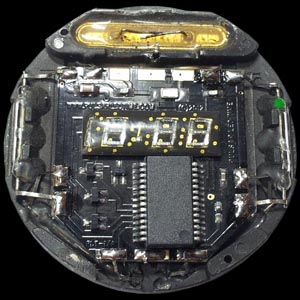

Installed on a Pulsar Plastic Carrier

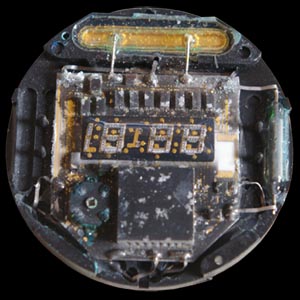

Original Pulsar LED Watch Module
A Corroded Dead Module!

Using the best of what modern technology is able to offer we have recreated all the functions of the original watch module plus more!

Four modes of operation, faithfully recreating the original functions of a one or a two button Pulsar LED watch module or Enhanced modes of operation offering additional features not available with the original Pulsar modules.


Higher precision than the original module is achieved by using a high precision Flexural Tuning Folk Quartz Crystal which is housed in a hermetically sealed heat resistant ceramic package. The module is then factory trimmed and calibrated for even greater accuracy.

The modern Ultra Fast Trench MOSFET Enhancement Mode Field Effect Transistors LED display drivers deliver a bright, crisp LED display as well as a uniform dimming function across all display segments.


The New PLT-1 LED Watch Module Will Repair The Following Watches.

Pulsar P2, Module #2900 Single Button Time Only LED Watch.
Pulsar P3, Modules #3100, #3013, #3120, #3130 Dual Button Time and Date LED Watch.

Hamilton QTC Module #995 Single Button, Time Only LED Watch.
Hamilton QED Module #955 Dual Button, Time and Date LED Watch.

Omega TC1, Time Computer 1, Calibre 1600, Single Button, Time Only LED Watch.
Omega TC2, Time Computer 2, Calibre 1601, Dual Button, Time and Date LED Watch.

The Concept of Operating Modes
We have introduced the concept of operating modes with this new PLT-1 LED Watch module. The operating mode is selectable through the configuration menus and allows the module to operate with different personalities!

A single button (Time) or a dual button (Time) & (Date) operating modes fully replicates the original functions of a one or two button Pulsar watch.

One Button Standard Mode
PLT-1 LED Watch Module
Two Button Standard Mode
PLT-1 LED Watch Module

As well as the two standard modes of operation we have included two enhanced modes of operation offering additional features not available with the original watch.

Using the enhanced modes of operation a single button (Time) only watch would be able to display in addition to standard Time functions, the Date, Weekday and Year! A two button (Time) & (Date) watch would be able to display, in addition to the standard Time and Date, the Weekday and Year.

One Button Enhanced Mode
PLT-1 LED Watch Module
Two Button Enhanced Mode
PLT-1 LED Watch Module

Additional Settable Features
Regardless of the mode of operation of the new PLT-1 module, additional parameters can be set through the Configuration menus to enable or disable features such as low battery warning, variable display turn off delay and display brightness adjustment.

For more information please refer to the following pages:

User Manual for the PLT-1 Replacement Pulsar LED Watch Module.
A Blog article on the development of the PLT-1 Pulsar LED Watch Module.

PLT-1 Module Guarantee
We Guarantee the PLT-1 Modules against defects for a period of 18 months from the date of purchase, regardless of the owner. We maintain a database of PLT-1 serial numbers to facilitate this. This Guarantee does not include old parts re-used from your old module and transplanted on the PLT-1 module.

Recommended Batteries to use
Recommended batteries to use with the new PLT-1 and the original modules are Genuine Swiss made Renata Silver Oxide type 357 (SR44W) 1.55 Volt Batteries or Energizer type EPX76 1.55 Volt High Drain Silver Oxide Batteries, not cheap copies from far east!

What we require and How to Order the PLT-1 Module
Send us your faulty watch or module, we would try to reliably fix your watch / Module first, failing that as long as the LED Display is good in your watch we can replace the module with the new PLT-1 module and get it working.

** We need your old module for its LED display, reed switches and the plastic carrier **

We would remove the Original LED Display from your old faulty module and transplant it on to the new PLT-1 module, then we would insert this new module on to the plastic carrier along with the reed switches that your old module came with to ensure you get your own parts from the old module back and not some ones else's old parts also it ensures correct reed switch alignment for the buttons.

PLT-1 Module Costs
The new PLT-1 Module costs £125 Pounds, and includes all the work needed to remove and transplant your old parts on to the new PLT-1 module.

We also stock Genuine Swiss made Renata Silver Oxide batteries at the cost of £4 Pounds each. If not available a set of home made battery spacers will be supplied for free when purchasing batteries.

There is no charge other than shipping costs back to you if its not possible to fix your watch.

Payment can be with PayPal, Pounds Sterling Cheque or Bank Transfer. No need to pay anything yet until the Watch / Module is fixed and ready to be shipped back.

Details
SKU PLT-1

Price: £125.00 (About US$168.75)
Options
2* Renata Silver Oxide Batteries type 357
Case Back Rubber Gasket / O-Ring
Quantity
